Swaged Hose Fittings

26711 Female Swivel JIC

JIC Female Swivel 37°
26711 Female Swivel JIC
26711 Female Swivel JIC
26711 Female Swivel JIC
26711 Female Swivel JIC
26711 Female Swivel JIC

Description

Reviews

JIC Female 74° Cone Seat (SAE J514)

Product Description

Part No.: 26711/26712

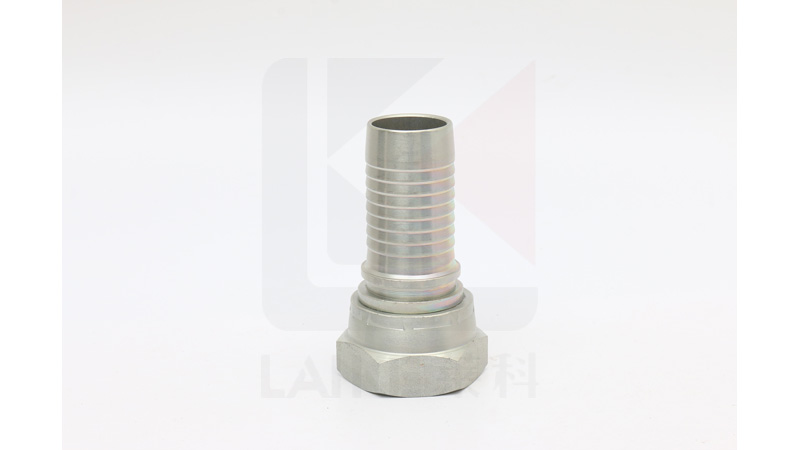

Description: Female Swivel JIC 37 Degree


Features:

* Material: Carbon Steel 45#/SUS304/SUS316

* Surface Treatment: Cr3+/Cr6+/Zini

* Salt Spray Test: 96h/130h


Specifications:


Product Showcase
Workflow
How to Read the Fittings
26711DY-06-04SS - Fitting Type (1=Male, 2=Female, 5=Metric Standpipe, 7=Banjo, 8=Flange)
26711DY-06-04SS - End Connection (1=METRIC, 2=BSP, 3=BSPT, 4=ORFS, 5=NPT, 6=JIC, 7=SAE, 8=JIS METRIC, 9=JIS GAS)
26711DY-06-04SS - Seal Type (1=Multi Seal, 2=Flat Seal , 3=Flat Seal with O-ring, 4=24° O-ring Cone Seal, Light Series,
                                                      5=24° O-ring Cone Seal, Heavy Series, 6=60° Cone Seal, 7=37° Cone Seal, 8=90° Cone Seal;
                                                      For flanges, 3=3,000 PSI, Code 61, 6=6,000 PSI, Code 62, 9=9,000 PSI, Caterpillar Series)
26711DY-06-04SS - Fitting Shape (1=Straight, 4=45 Degree Elbow, 9=90 Degree Elbow)
26711DY-06-04SS - Hose Application (1=For One or Two Wire Braided Hose,
                                                                    2=For Four Wire Spiral Hose,
                                                                    3=For Six Wire Spiral Hose)
26711DY-06-04SS - Hexagon (No Suffix=Single Hexagon, D=Double Hexagon)
26711DY-06-04SS - Fitting Type (No Suffix=Two Piece Series Fitting, Y=One Piece Fitting Series)
26711DY-06-04SS - Size of Fitting End Connection
26711DY-06-04SS - Hose Size
26711DY-06-04SS - Fitting Material (No Suffix=Carbon Steel, B=Brass, SS=Stainless Steel)

Application

The female swivel JIC 37 degree hose fitting 26711 is one of the most frequently used hose ends in hydraulic system
